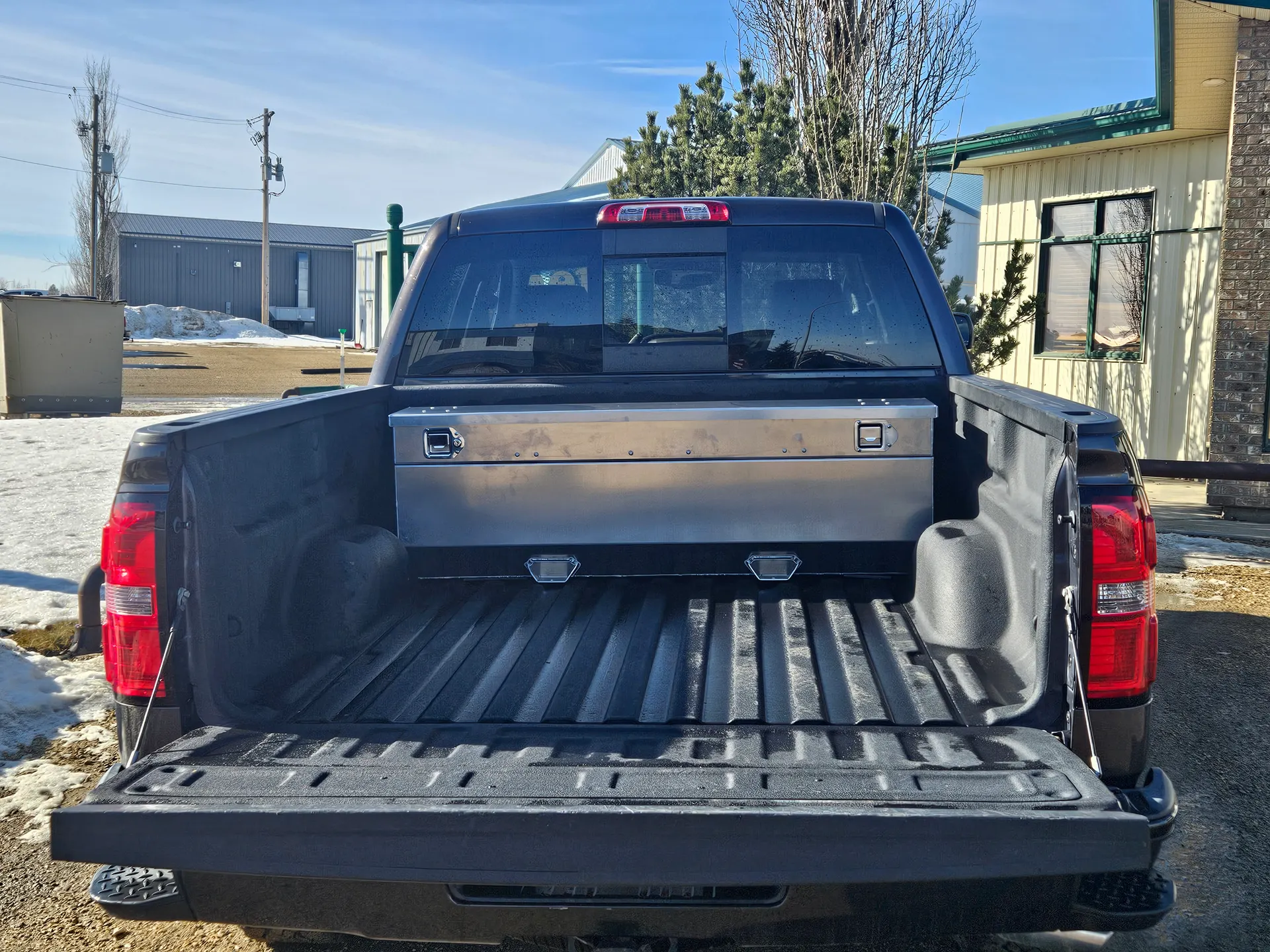

Toolbox Transfer Tank Combo
Fuel and lockable tool storage in one unit.
Built for the job
A dual-purpose unit that combines secure diesel storage with organized tool space. Available in Half-Lid for quick access or Full-Lid for maximum security — both tonneau-compatible and fit behind most fifth-wheel hitches.
-

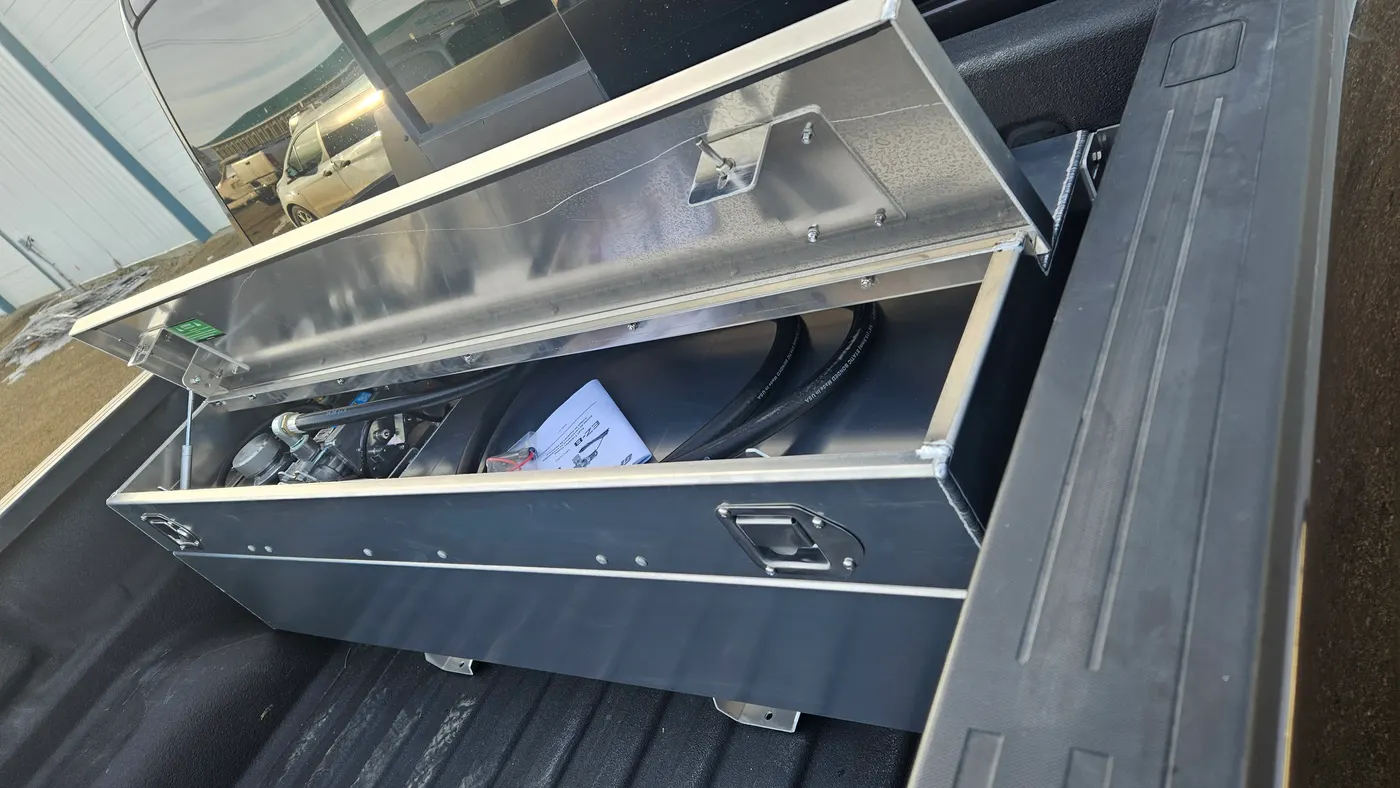

Half-Lid or Full-Lid
Quick reach for daily tools, or full enclosure for security and weather protection.
-
Tank + Toolbox
One integrated unit means more usable bed space and no loose boxes.
-
165L & 200L
Right-sized fuel capacity without sacrificing storage.
CT Specifications
Measurements are approximate; please verify dimensions before ordering.
| Model | Capacity | Width | Depth | Height | Dry Wt. |
|---|---|---|---|---|---|
| CT-165 (HL/FL) | 165 L | 51.25" | 18.38" | 18.37" | 75 lb |
| CT-200 (HL/FL) | 200 L | 59.44" | 18.38" | 18.37" | 85 lb |
Half-Lid (HL) and Full-Lid (FL) options. Supplied with GPI EZ-8 or M-150 (tank + toolbox are assembled with the pump installed).
Listed capacities are nominal — the theoretical full volume. Usable capacity is lower; we recommend filling to a maximum of 80% to allow for fuel expansion and safe transfer.
The pump collar accepts GPI spin-on pumps only.
Standard on every unit
Fully Seal-Welded
Pressure-tested for leak-proof, long-haul reliability.
Formed Internal Baffles
Fluid control that keeps the load stable on the move.
Custom-Machined Fill Caps
Non-vented neck with a roll-over vent valve for safe transfer.
Stainless Hardware
Corrosion-resistant fittings built for Canadian conditions.
Tonneau-Cover Compatible
Low-profile design sits tight and closes flush in the bed.
Diesel Only
Designed specifically for diesel fuel transfer and storage.
